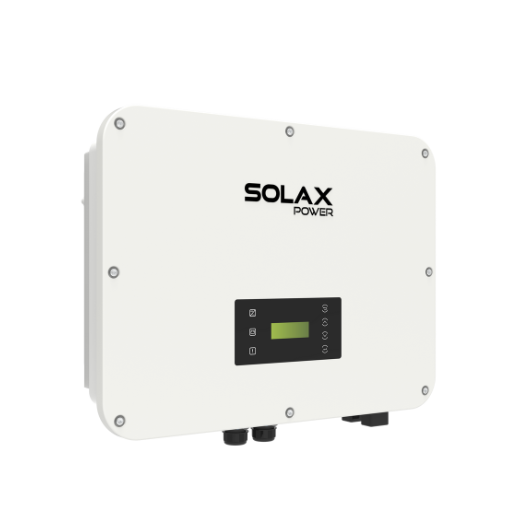

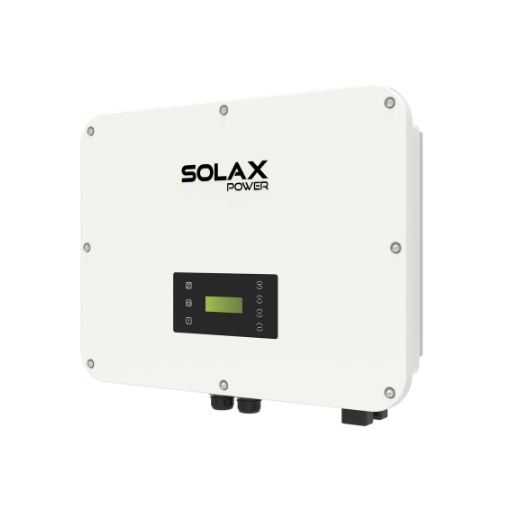

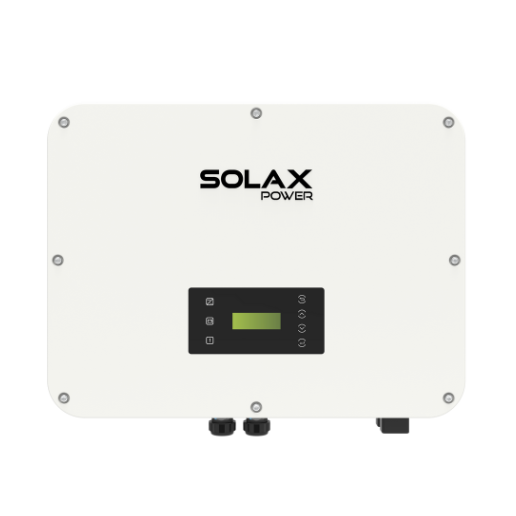

储能逆变器

X3-ULTRA

15kW / 19.9kW / 20kW / 25kW / 30kW

X3-ULTRA具备卓越的灵活性，支持多达10台机组并离网并联运行。每路MPPT高达36A的光伏输入电流，完美适配大功率光伏组件。先进的微电网及发电机功能进一步增强了其环境适应性，成为住宅、商业及工业应用的理想解决方案。

观看视频
资料下载

产品优势

X3-ULTRA支持200%光伏超配，实现100%交流输出及电池储能。配备2/3路MPPT，既确保系统容错性又提升发电效率。微电网功能支持离网运行，在电网中断时可通过光伏或电池为组串逆变器供电，有效降低对电网的依赖。

联系我们

安全可靠

IP66防护等级
交直流侧均配备II级浪涌保护装置
AFCI直流拉弧保护（可选）

灵活适配

最多支持10台并离网并联运行
微电网及发电机功能，适用多样化应用场景
每路MPPT光伏输入电流最高达36A，完美适配大功率光伏组件

高性能表现

支持200%光伏超配及最高110%交流输出
EPS过载能力达200%（可持续10秒）
最大60A充放电电流
低启动电压，延长系统运行时间

智能管理

单机UPS级切换时间<10ms
内置阴影追踪功能
智能负载管理（适配热泵、智能电动汽车充电桩等设备）
负载响应时间≤0.3秒
具备虚拟电厂（VPP）功能，支持多种通信协议（如IEEE 2030.5）

Product Parameters

X3-ULT-15K
X3-ULT-15KP
X3-ULT-19.9K
X3-ULT-20K
X3-ULT-20KP
X3-ULT-25K
X3-ULT-30K

X3-ULT-15K
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15000 W(AS4777 14999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-15KP
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15000 W(AS4777 14999 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-19.9K
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-20K
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-20KP
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3/ (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20000 W
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-25K
- PV INPUT

  Max. recommended PV array power 50 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 25000 W(VDE4105 24900 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
X3-ULT-30K
- PV INPUT

  Max. recommended PV array power 60 kWp
  MPPT voltage range 160~950 V
  No. of MPP. trackers / strings per MPPT 3 / (2 / 2 / 2)
  Max. input current per MPPT 36 A / 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 30000 W (AS4777 29999 W,VDE4105 29900 W)
  Rated AC voltage
  3/N/PE,220/380V
  3/N/PE,230/400V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power 2 times of rated power, 10 s
  Switchover time <10 ms
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D) 696x526x240 mm
  Net Weight 47 kg
