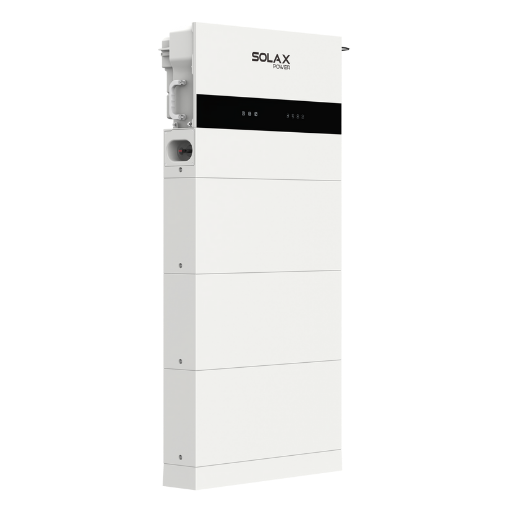

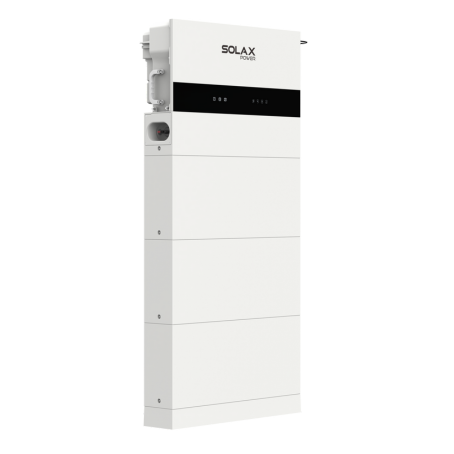

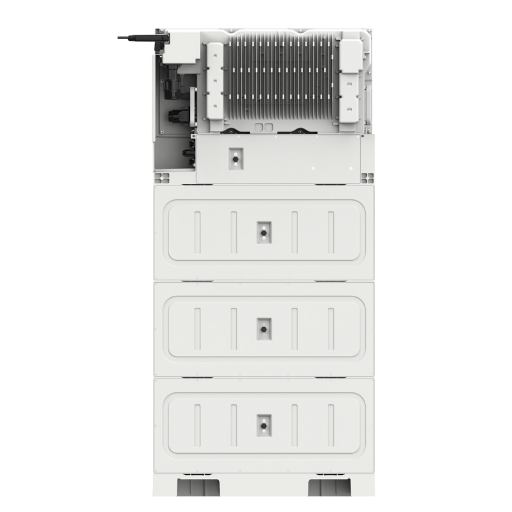

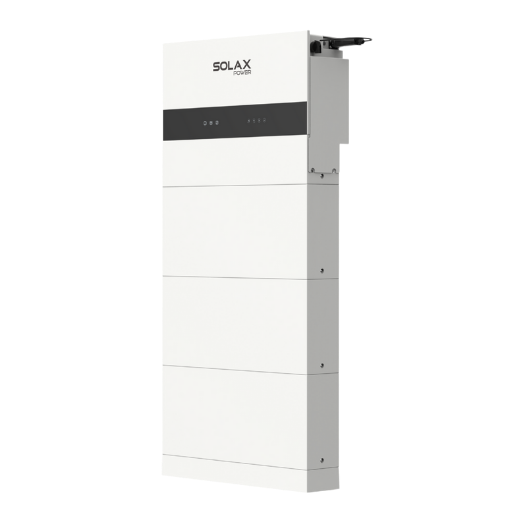

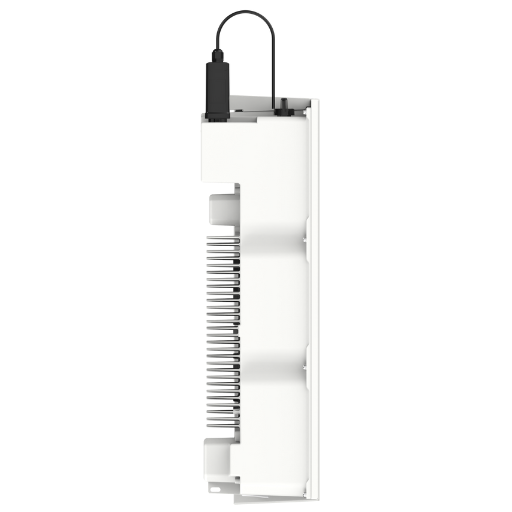

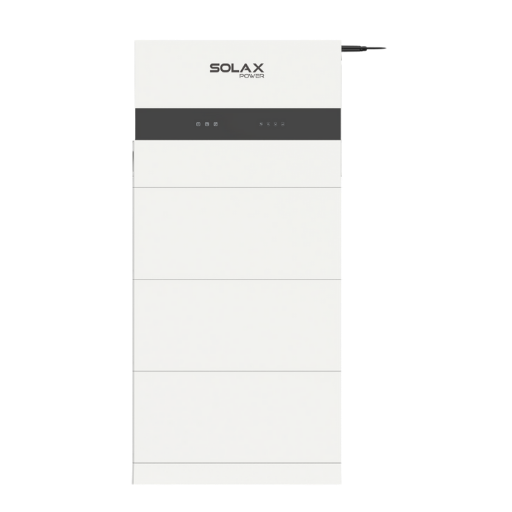

户用一体式储能系统

X1-IES

  • 2.5K / 3.7K / 4.6K / 5K / 6K / 8K

艾罗X1-IES是一款高性能户用储能系统，具备并离网多模式运行能力。系统转换效率达98%，输出功率6kW，IP65防护等级确保安全可靠。通过艾罗云平台实现智能能量管理与实时优化，模块化设计（最高支持40kWh）助力家庭能源方案灵活扩展。

产品优势

X1-IES支持200%光伏输入及10秒EPS过载输出，有效满足峰值负荷期间的高效用能需求。系统具备AI就绪与虚拟电厂（VPP）集成能力，在保障无缝扩容的同时为能源系统提供前瞻性技术支撑。


联系我们

Assured Reliability

  • 可靠保障

  • IP66防护等级

  • 交直流侧II型电涌保护

  • 可选AFCI电弧故障防护

  • UPS级切换时间＜10ms


智能管理

  • AI就绪，可预测发电量与家庭能耗，实现智慧能源策略调控*

  • 虚拟电厂（VPP）就绪，支持多协议兼容（OpenADR、IEEE 2030.5、FCAS、API）**

  • 智能负载管理（适配热泵、智能电动汽车充电桩等设备）

  • 微电网支持，实时平衡并/离网运行

  • 无线计量兼容

  • 全局MPP扫描，提升能源采集效率

灵活适配

  • 一体式即插即用设计

  • 最高20A直流输入电流，完美适配大功率光伏组件

高性能表现

  • 最大50A充放电电流

  • 支持200%超配及200%光伏输入功率

  • EPS输出最高达200%（可持续10秒）

  • 低启动电压，延长系统运行时间

  • 循环次数＞6000次

Product Parameters

  • X1-IES-2.5K
  • X1-IES-3K
  • X1-IES-3.7K
  • X1-IES-5K
  • X1-IES-6K
  • X1-IES-8K
  • X1-IES-2.5K
    • PV INPUT

      Max. recommended PV array power

      5.0 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      2/(1/1)

      Max. input current per MPPT

      20 A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      2500 W

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      2500 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.2 kg


  • X1-IES-3K
    • PV INPUT

      Max. recommended PV array power

      6.0 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      2/(1/1)

      Max. input current per MPPT

      20 A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      3000 W

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      3000 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.2 kg


  • X1-IES-3.7K
    • PV INPUT

      Max. recommended PV array power

      7.4 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      2/(1/1)

      Max. input current per MPPT

      20 A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      3680 W

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      3680 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.2 kg


  • X1-IES-5K
    • PV INPUT

      Max. recommended PV array power

      10.0 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      3/(1/1/1)

      Max. input current per MPPT

      20A/20A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      5000 W

      (4600 for VDE41054999 for AS4777)

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      5000 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.4 kg


  • X1-IES-6K
    • PV INPUT

      Max. recommended PV array power

      12.0 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      3/(1/1/1)

      Max. input current per MPPT

      20 A/20 A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      6000 W

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      6000 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.4 kg


  • X1-IES-8K
    • PV INPUT

      Max. recommended PV array power

      16.0 kWp

      MPPT voltage range

      40~560 V

      Number of MPP. trackers / strings per MPPT

      3/(1/1/1)

      Max. input current per MPPT

      20 A/20 A/20 A



    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      8000 W

      Rated AC voltage

      1/N/PE,220/230/240V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      8000 VA

      Peak EPS output power

      2 times of rated power, 10 s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Max Charge / Discharge current

      50 A

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x350x210 mm

      Net Weight

      26.4 kg
