智慧交流充电桩

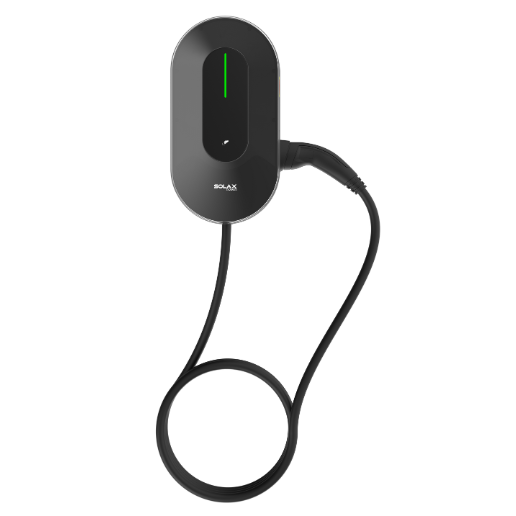

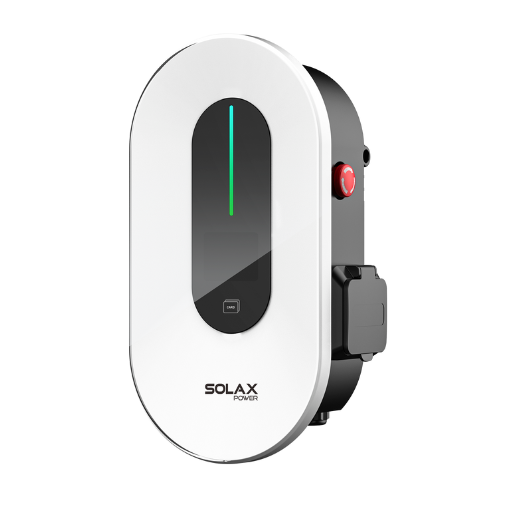

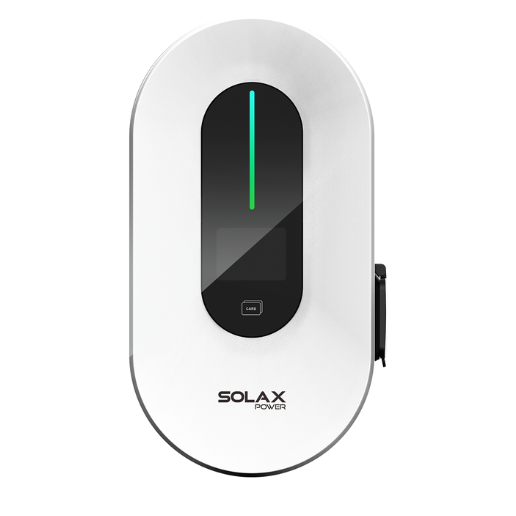

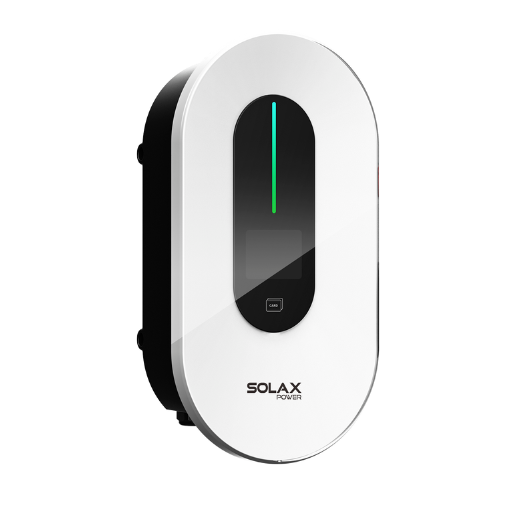

二代智慧交流充电桩
-
4.6kW/7.2kW/11kW/22kW
智能EV充电桩是一款新一代4.6/7.2/11/22kW充电设备，兼顾快速充电与节能表现。支持WiFi/4G/以太网三种联网方式，可通过SolaX云平台实现远程调度与实时监控。具备动态负载均衡及光伏适配功能，智能优化用电分配，同时支持即插即充，为用户提供无缝便捷体验。
-
观看视频
灵活适配

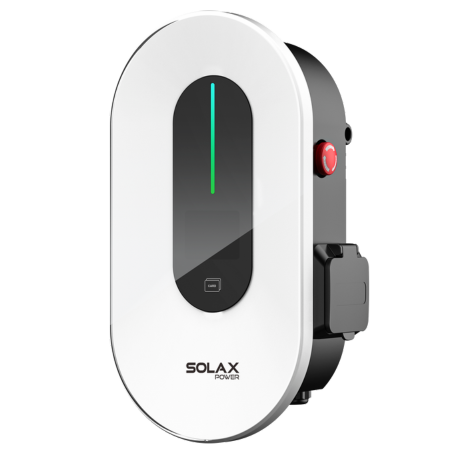

可选插头式或插座式接口

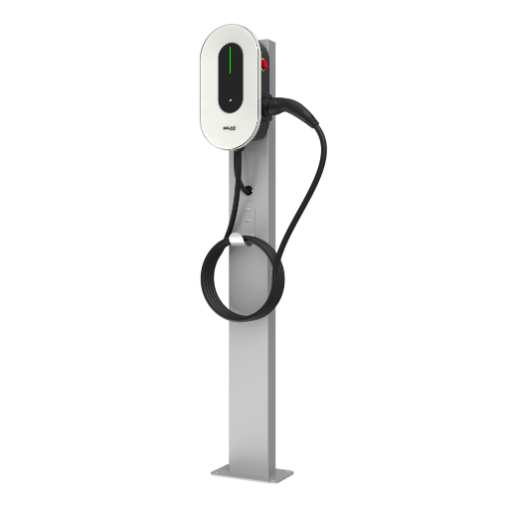

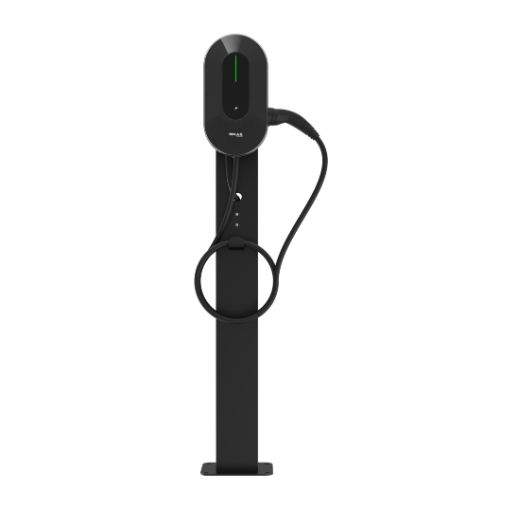

室内外便捷安装
支持多种通信协议
高效运行
支持100%绿色能源供电
单相/三相自动切换
零反灌系统中最大化利用绿色能源盈余
可靠安全
漏电保护（交流30mA & 直流6mA）
智能动态负载均衡控制
智能设计
智能RFID管理功能
APP远程智控
Product Parameters
-
X1-HAC-4-
AC NOMINAL INPUT
Voltage 230 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~ 4.6 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug / Type2 socket (IEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 5 kg for plug type Dimensions (W x H x D) 206 x390x139 mm
-
-
X1-HAC-7
-
AC NOMINAL INPUT
Voltage 230 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~7.2 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug / Type2 socket (IEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
-
X1-HAC-11
-
AC NOMINAL INPUT
Voltage 400 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~11 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug/Type2 socket (lEC 62196) Degree of protection IP65 (plug type) / IP54 (socket type)
IK10 (housing) / IK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
6.5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
-
X3-HAC-22
-
AC NOMINAL INPUT
Voltage 400 V Grouding type TN, TT, IT -
AC NOMINAL OUTPUT
Power 1.4~22 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / 4G (optional) / RS 485 x 2 -
GENERAL
Charging outlet Type2 plug/Type2 socket (lEC 62196) Degree of protection IP65 (plug type) /lP54 (socket type)
IK10 (housing)/lK08 (screen)
Cooling method Natural cooling Application site Indoor / Outdoor Net weight 3 kg for socket type
6.5 kg for plug type
Dimensions (W x H x D) 206 x390x139 mm
-
