工商业一体式储能系统

概述

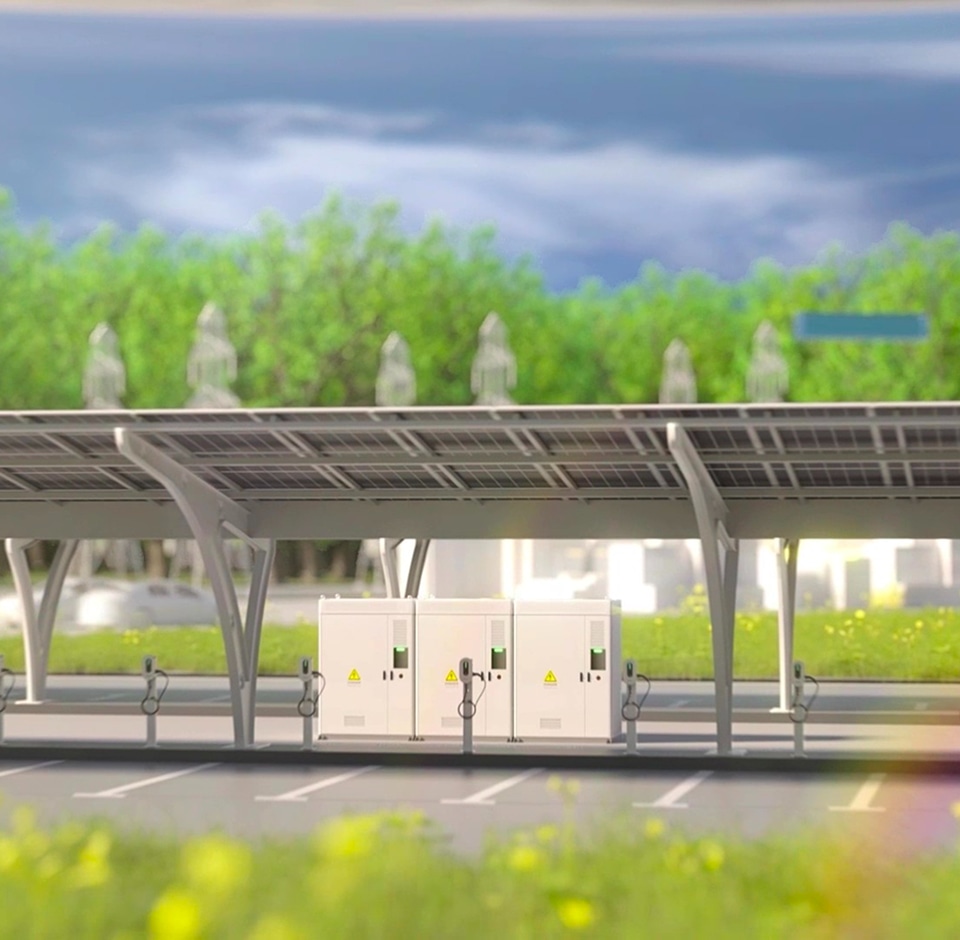

艾罗能源工商业储能系统是专为商业和工业场景设计的高效解决方案，采用液冷与风冷双模式散热系统，确保最优运行性能。系统基于磷酸铁锂技术，配备先进能量管理系统（EMS）与储能变流器（PCS），支持实时监控、智能调度，并可无缝对接光伏发电、电动汽车充电及备用电源系统。适用于削峰填谷、需求响应及备电保障等场景，显著提升能效、降低用能成本并增强用能安全。

  • 一体化集成

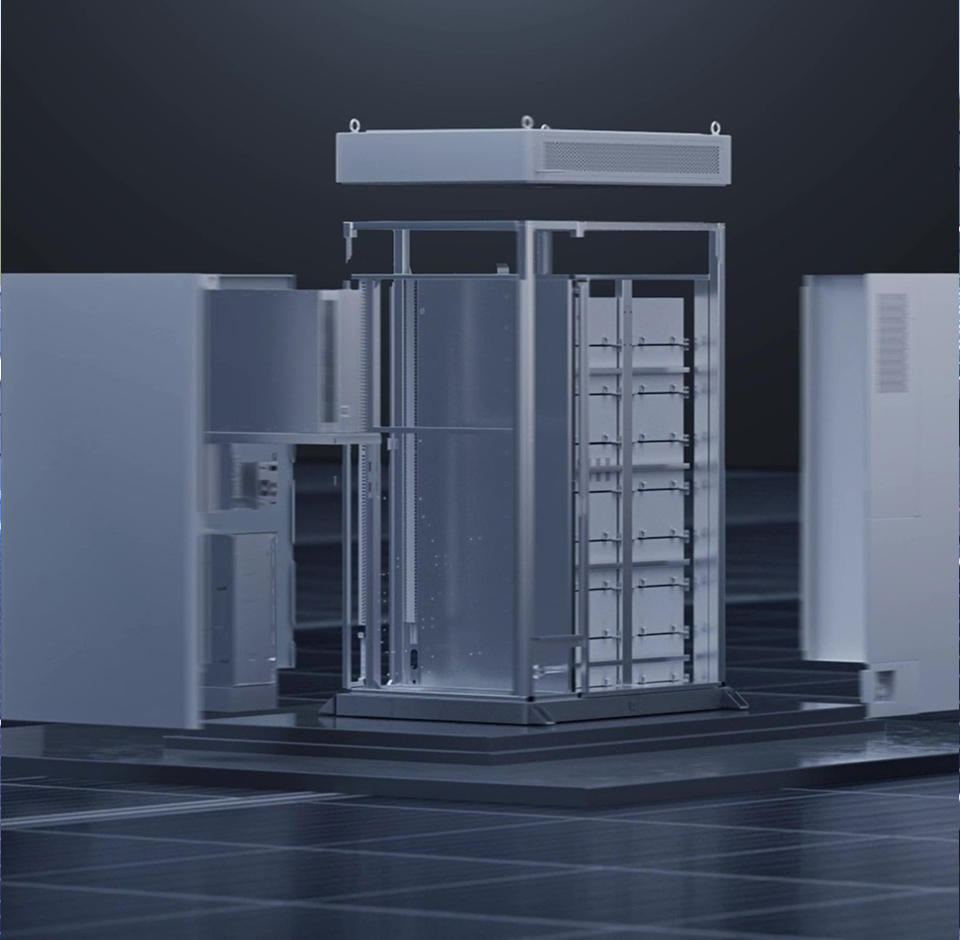

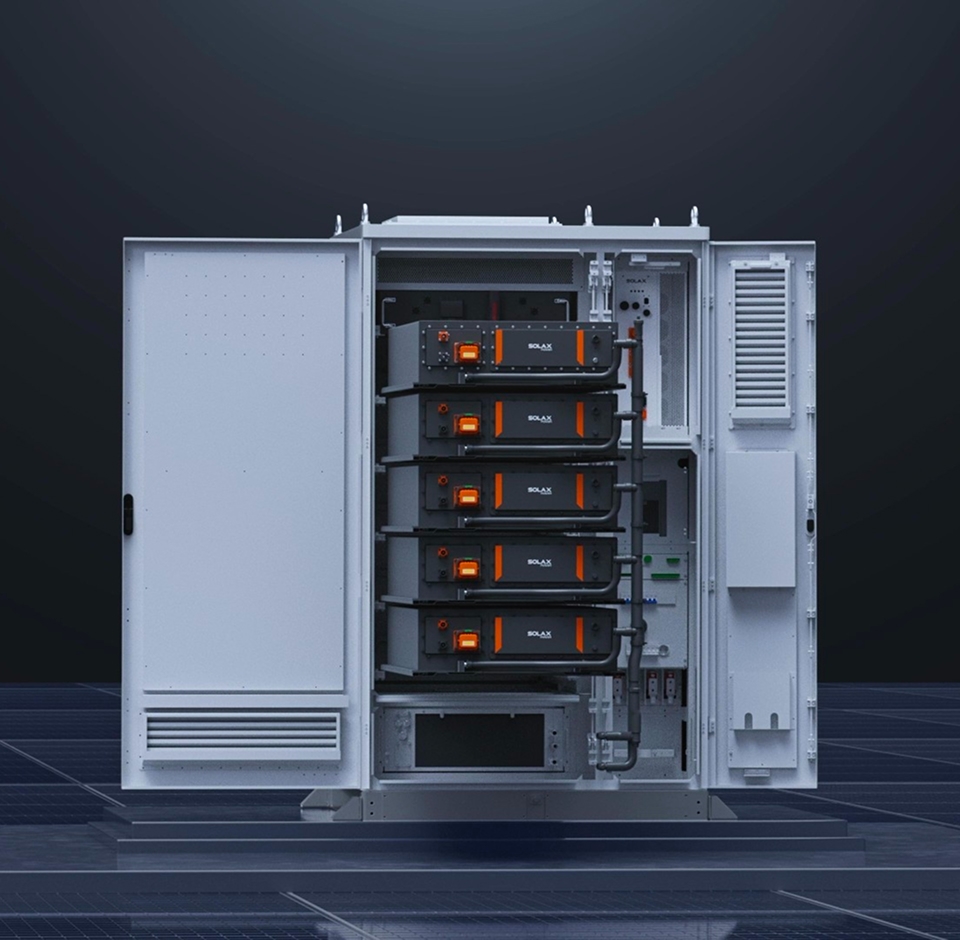

    我们的工商业储能系统采用一体化设计，将储能电池、PCS、热管理系统及交直流配电整合于单一装置。电池容量最高达261 kWh，为商业和工业应用提供稳定可靠的电力保障，大幅简化部署与维护流程。


    • 最高261 kWh

      电池容量

    • 最高125 kW

      输出功率

  • 多重安全保障

    系统配备四层级防火防护设计，逆变器达到IP66防护等级，机柜具备IP55防护级别，确保在多种环境下保持高耐久性与安全可靠性。

    • 四层级

      防火设计

    • IP66逆变器 | IP55机柜

      强化防护

  • 卓越性能表现

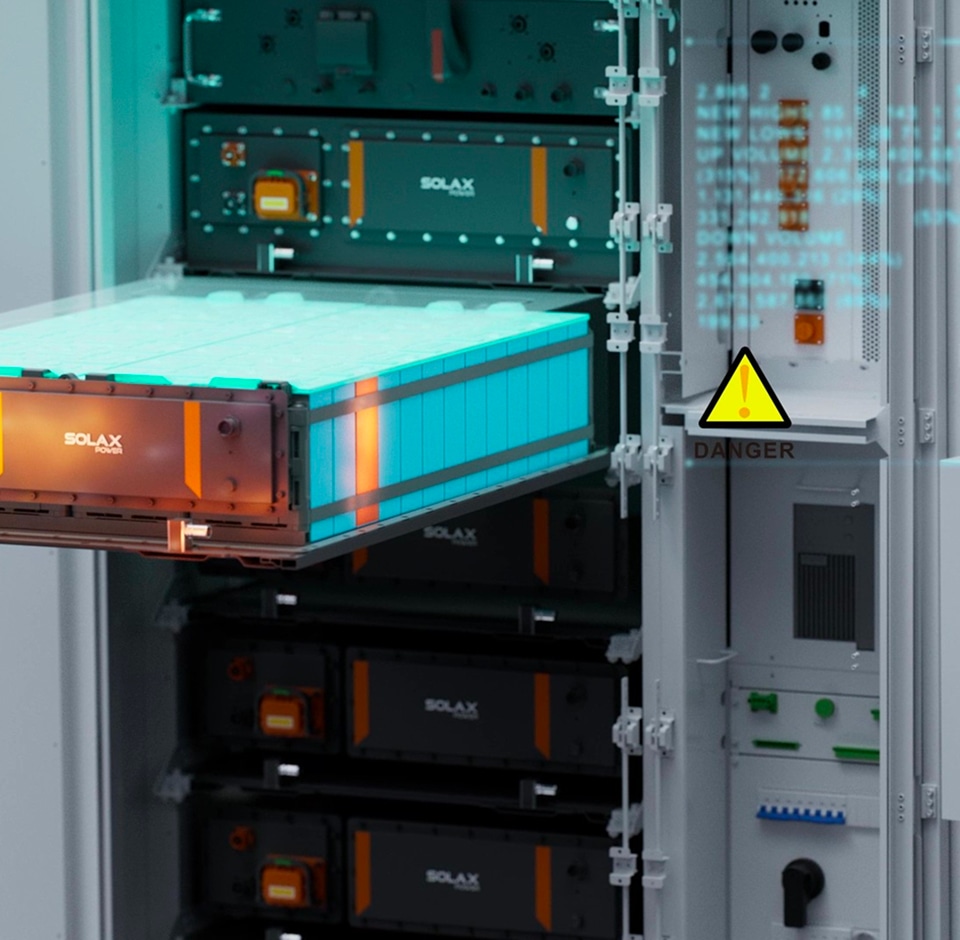

    采用高性能磷酸铁锂电池，艾罗能源工商业储能系统具备长循环寿命与稳定输出特性。智能液冷热管理技术精准调控电池温度，提升系统效率与使用寿命。

    • 磷酸铁锂电池

      长循环寿命

    • 智能液冷技术

      精准温控

  • 智能管理

    工商业储能系统支持虚拟电厂（VPP）功能，并集成艾罗云平台实现全天候远程监控，确保随时随地高效稳定运行。

    • 虚拟电厂支持 | 全天候监测

产品参数

  • TRENE-P125B261L-E
  • TRENE-P124B261L-E
  • TRENE-P249B1044L-4H
  • TRENE-P250B1044L-4H
  • TRENE-P499B1044L-2H
  • TRENE-P500B1044L-2H
  • TRENE-P249B1044L-4H
  • TRENE-P250B1044L-4H
  • TRENE-P125B261L-E
    • AC SIDE (ON-GRID)
      Rated AC power125 kW
      Rated AC voltage3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity261 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)1350 x 2355 x 1350 mm
      Weight2810 kg
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55

      If there is any change in product size and parameters, please refer to the latest information without prior notice.

  • TRENE-P124B261L-E
    • AC SIDE (ON-GRID)
      Rated AC power124.9 kW
      Rated AC voltage3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity261 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)1350 x 2355 x 1350 mm
      Weight2810 kg
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55

      If there is any change in product size and parameters, please refer to the latest information without prior notice.

  • TRENE-P249B1044L-4H
    • AC SIDE (ON-GRID)
      Rated AC power249.8kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight12.5 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55


  • TRENE-P250B1044L-4H
    • AC SIDE (ON-GRID)
      Rated AC power250 kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight12.5 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55


  • TRENE-P499B1044L-2H
    • AC SIDE (ON-GRID)
      Rated AC power499.6 kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight13 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55


  • TRENE-P500B1044L-2H
    • AC SIDE (ON-GRID)
      Rated AC power500kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight13 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55


  • TRENE-P249B1044L-4H
    • AC SIDE (ON-GRID)
      Rated AC power249.8kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight12.5 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55


  • TRENE-P250B1044L-4H
    • AC SIDE (ON-GRID)
      Rated AC power250 kW
      Rated AC voltage

      3/N/PE,230/400 V

      3/N/PE,220/380 V

      Rated AC frequency50 Hz / 60 Hz


    • DC SIDE
      Battery typeLFP / 314 Ah
      Battery capacity1044 kWh
      Rated battery voltage832 V


    • SYSTEM PARAMETER
      Dimensions (W×D×H)2991 x2896 x2438 mm
      Weight12.5 t
      Operating  temperature range-30 ~ 55°C (＞45℃ derating)
      Max. operation altitude3000 m

      Cooling concept

      		Liquid cooling
      Ingress protection   IP55
