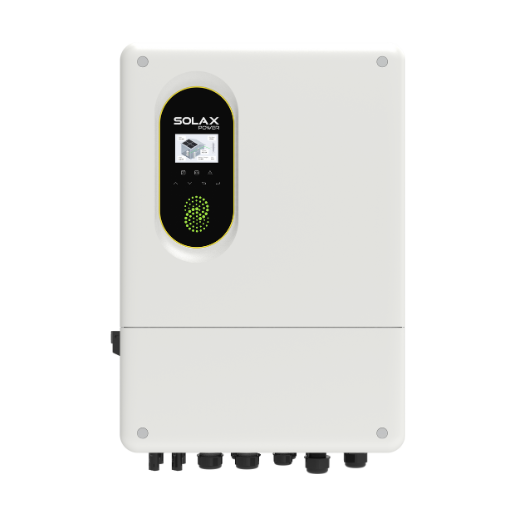

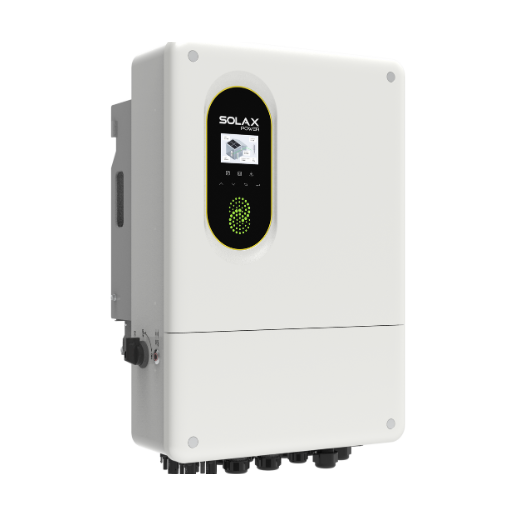

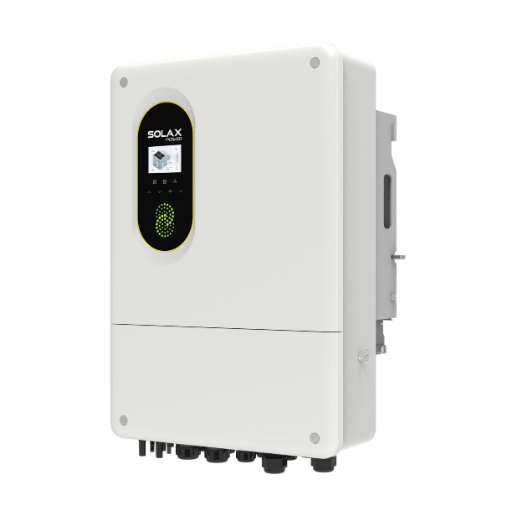

储能逆变器
X3-NEO-LV
-
5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW / 20.0kW
X3-NEO-LV支持最多3台并机并离网运行。其微电网及发电机兼容特性确保在不同能源环境中无缝集成，同时每路MPPT高达36A的直流输入，完美适配大功率光伏组件。
-
观看视频
产品优势
X3-NEO-LV支持高达200%的光伏超配，确保系统高效灵活运行。产品具备IP65防护等级、内置浪涌保护器及可选配AFCI直流拉弧保护，全面保障系统安全。经济性方面，凭借低启动电压设计，可适配大功率光伏组件并延长运行时间。
灵活适配
最多可并联3台，适用于并网和离网系统。
微电网和发电机功能，可实现多种运行方式*（此功能将通过后续升级开放）
智能管理
全局最大功率点扫描，实现最佳能量采集*（此功能将通过后续升级开放）
智能负载管理
高性能表现
最多可配置 2 个 MPPT，满足多种应用场景
支持 200% 超配和 200% 光伏输入功率
每个 MPPT 最大 36 A 光伏输入
低启动电压，实现更高能量采集
稳定可靠
电池端子温度检测
IP65 防护等级
交流/直流侧 II 型浪涌保护器 (SPD)
AFCI 保护（可选）*（此功能将通过后续升级开放）
EPS 输出功率最高可达 200%，持续 10 秒
单台 UPS 级切换时间 < 3 毫秒
Product Parameters
-
X3-NEO-5K-LV-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (1 / 1) Max. input current per MPPT 18 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 5 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 10 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-8K-LV
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (1 / 1) Max. input current per MPPT 18 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 16 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-10K-LV
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 1) Max. input current per MPPT 36 A / 18 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 10 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 20 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-12K-LV
-
PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 12 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 24 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-15K-LV
-
PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 15 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 30 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 44.6 kg
-
-
X3-NEO-20K-LV
-
PV INPUT
Max. recommended PV array power 40 kWp MPPT voltage range 160 ~ 950 V No. of MPP. trackers / strings per MPPT 2 / (2 / 2) Max. input current per MPPT 36 A / 36 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 20 kW Rated AC voltage 3W / N / PE, 220 / 380 V
3W / N / PE, 230 / 400 V
3W / N / PE, 240 / 415 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 40 kVA
2 times of rated power, 10 s
Switchover time <3 ms -
GENERAL
Ingress protection IP65 Dimensions (W /H / D) 520 × 705 × 258 mm Net Weight 45.2 kg
-
