电池

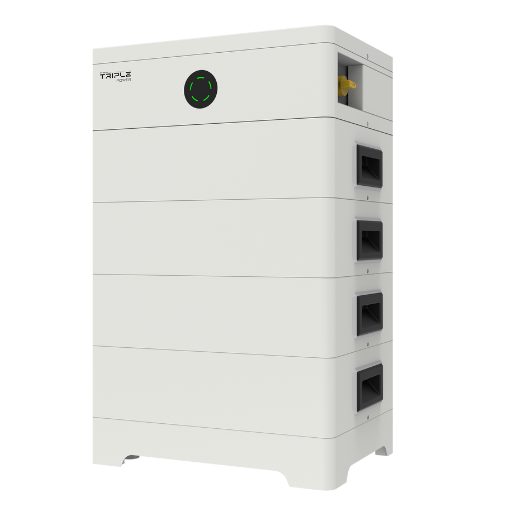

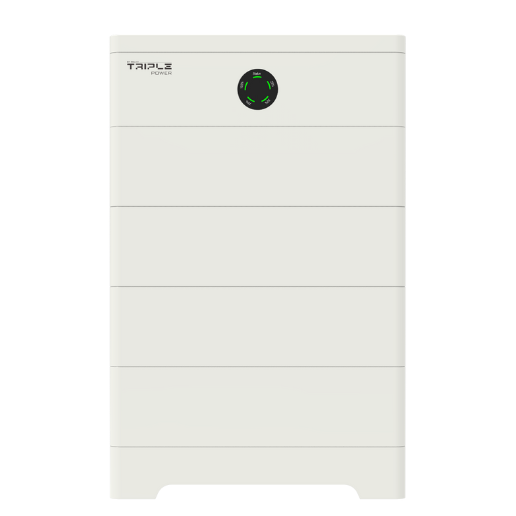

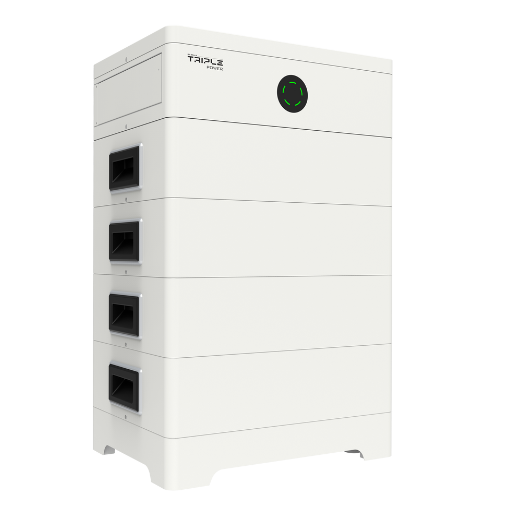

T-BAT-SYS-HV-S2.5

  • 5.1千瓦时-33.2千瓦时

该系统采用磷酸铁锂电芯及高性能处理器，系统容量范围覆盖5.1 kWh至33.2 kWh。T-BAT-SYS-HV-S2.5 充放电电流最高达50A，并具备IP65防护等级，确保运行安全可靠。

产品优势

该产品提供可靠能源解决方案，采用堆叠化设计便于安装，适用于并网、离网及备用电源等多种场景。系统搭载安全的磷酸铁锂电芯，确保持久稳定的性能表现，可满足多样化能源需求。

联系我们

灵活适配

  • 容量可扩展，满足长期使用需求

  • 模块化堆叠设计，即插即用

高性能表现


  • 5.1-33.2 kWh宽容量范围
  • 最大50A充放电电流

  • 循环次数＞6000次

稳定可靠

  • 磷酸铁锂电芯与高性能处理器


  • IP65防护等级

智能管理

  • 远程故障诊断、升级与维护

  • 独家电池加热技术，保障低温运行

  • 可选二合一并联线缆，便捷扩容并延长电池寿命

Product Parameters

  • T-BAT HS5.0
  • T-BAT HS7.5
  • T-BAT HS10.0
  • T-BAT HS12.5
  • T-BAT HS15.0
  • T-BAT HS17.5
  • T-BAT HS20.0
  • T-BAT HS22.5
  • T-BAT HS25.0
  • T-BAT HS27.5
  • T-BAT HS30.0
  • T-BAT HS32.5
  • T-BAT HS5.0
    • SYSTEM DATA
      Number of modules2 Modules
      Rated energy5.12 kWh
      Rated voltage102.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS7.5
    • SYSTEM DATA
      Number of modules3 Modules
      Rated energy7.68 kWh
      Rated voltage153.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS10.0
    • SYSTEM DATA
      Number of modules4 Modules
      Rated energy10.24 kWh
      Rated voltage204.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS12.5
    • SYSTEM DATA
      Number of modules5 Modules
      Rated energy12.80 kWh
      Rated voltage256.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS15.0
    • SYSTEM DATA
      Number of modules6 Modules
      Rated energy15.36 kWh
      Rated voltage307.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS17.5
    • SYSTEM DATA
      Number of modules7 Modules
      Rated energy17.92 kWh
      Rated voltage358.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS20.0
    • SYSTEM DATA
      Number of modules8 Modules
      Rated energy20.48 kWh
      Rated voltage409.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS22.5
    • SYSTEM DATA
      Number of modules9 Modules
      Rated energy23.04 kWh
      Rated voltage460.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS25.0
    • SYSTEM DATA
      Number of modules10 Modules
      Rated energy25.60 kWh
      Rated voltage512.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS27.5
    • SYSTEM DATA
      Number of modules11 Modules
      Rated energy28.16 kWh
      Rated voltage563.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS30.0
    • SYSTEM DATA
      Number of modules12 Modules
      Rated energy30.72 kWh
      Rated voltage614.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS32.5
    • SYSTEM DATA
      Number of modules13 Modules
      Rated energy33.28 kWh
      Rated voltage665.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module2.5 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight13 kg
      Battery typeLFP
      Ingress protectionIP65
