监控设备
Pocket Dongle
-

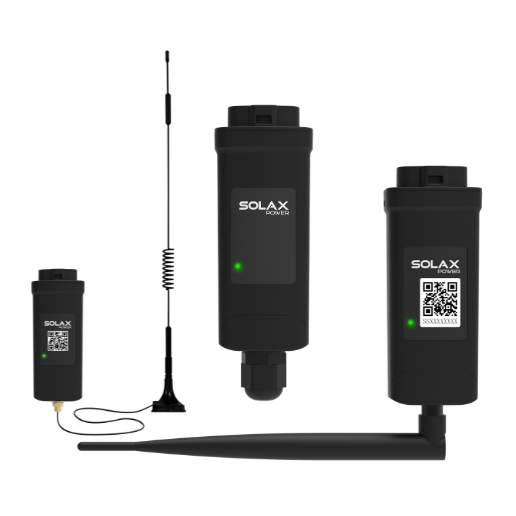

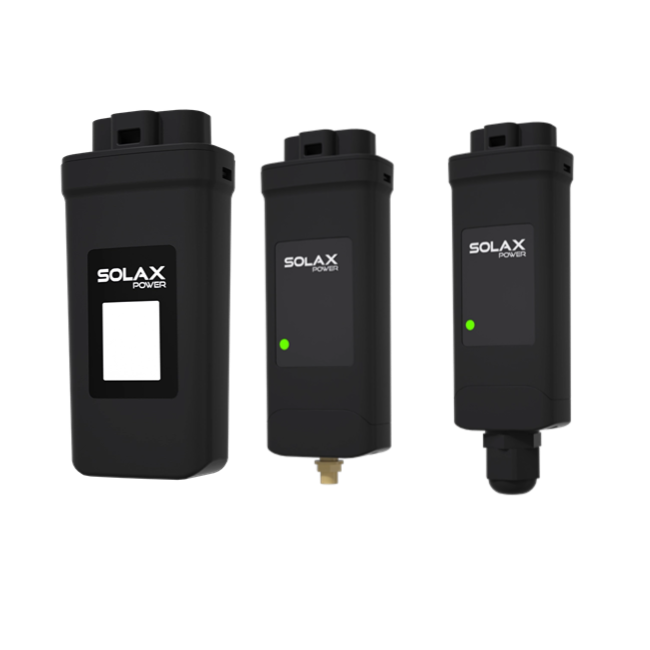

Pocket WiFi V3.0-P / Pocket WiFi+LAN / Pocket WiFi+4GM
SolaX Pocket系列——包括Pocket WiFi V3.0-P、Pocket WiFi+LAN及Pocket WiFi+4GM型号——采用流线型即插即用设计，具备IP65强效防尘防水性能。全系产品能轻松适配各类环境，为光伏系统与云端平台提供稳定不间断的通信连接。

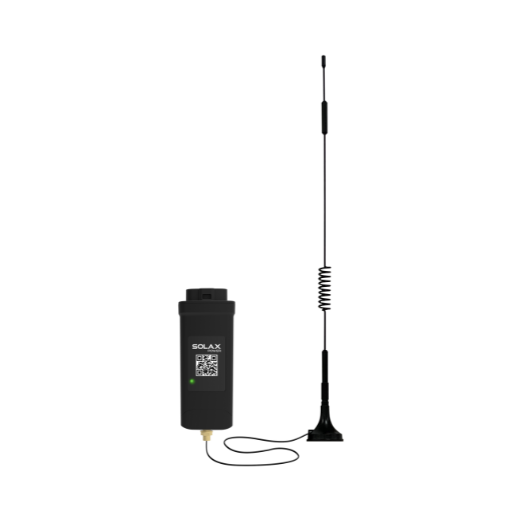

Pocket WiFi+4GM
即插即用，快速安装
IP65防尘防水设计
数据传输稳定可靠
离线数据存储与续传
10秒实时数据监测
支持Modbus TCP协议
兼容IEEE 2030.5标准*

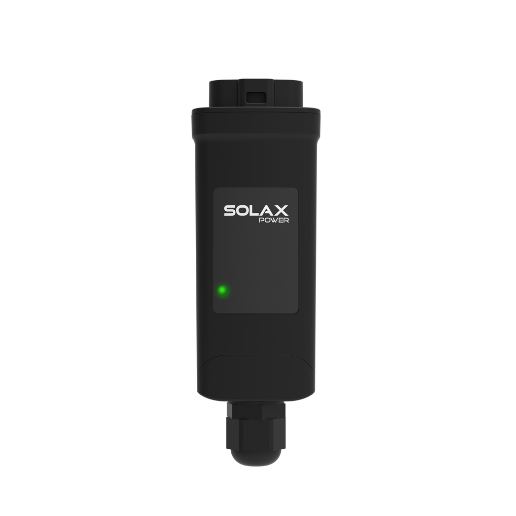

Pocket WiFi+LAN
即插即用，快速安装
IP65防尘防水设计
数据传输稳定可靠
离线数据存储与续传
10秒实时数据监测
支持Modbus TCP协议
兼容IEEE 2030.5标准*
适配OpenADR规范*
支持WiFi与有线网络自动切换

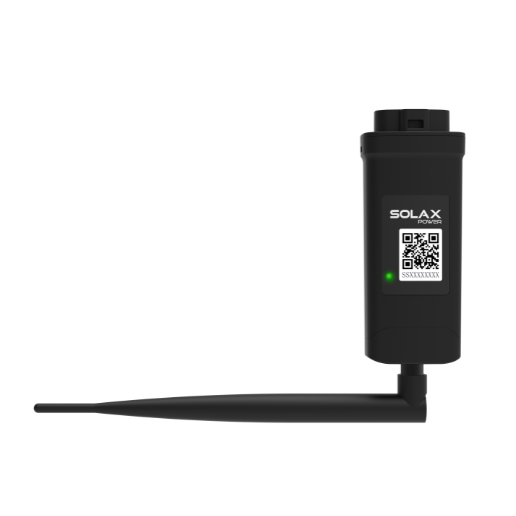

Pocket WiFi V3.0-P
即插即用，快速安装
IP65防尘防水设计
数据传输稳定可靠
离线数据存储与续传
多天线智能适配
10秒实时数据监测
支持Modbus TCP协议
兼容IEEE 2030.5标准*
适配OpenADR规范*
Product Parameters
-
Pocket WiFi+4GM-
MECHANICAL DATA
Dimensions(W × H × D) 112 x 45.7 x 28.5 mm Weight 124 ± 10 g -
COMMUNICATION FEATURES
Wireless module WiFi 2.4 GHz Antenna gain 3 dBi Data transfer interval 5 mins / 10s optional -
ENVIRONMENTAL & PROTECTION
Operating temperature range -35°C ~ +60°C Degree of protection IP65
-
-
Pocket WiFi+LAN
-
MECHANICAL DATA
Dimensions(W × H × D) 112 x 45.7 x 28.5 mm Weight 80 ± 10 g -
COMMUNICATION FEATURES
Wireless module WiFi 2.4 GHz Antenna gain 3 dBi Data transfer interval 5 mins / 10s optional -
ENVIRONMENTAL & PROTECTION
Operating temperature range -35°C ~ +60°C Degree of protection IP65
-
-
Pocket WiFi V3.0-P
-
MECHANICAL DATA
Dimensions(W × H × D) 112 x 45.7 x 28.5 mm Weight 107 ± 10 g -
COMMUNICATION FEATURES
Wireless module WiFi 2.4 GHz Antenna gain 3 dBi Data transfer interval 5 mins / 10s optional -
ENVIRONMENTAL & PROTECTION
Operating temperature range -35°C ~ +60°C Degree of protection IP65
-
资料下载
中文
-
文件名称语言格式大小最后更新时间下载
